Electrical safety is critical in healthcare facilities and other environments that rely on specialized power systems. Line Isolation Monitoring provides continuous monitoring of an isolated electrical system to identify changes in its isolation from ground. This gives facility personnel an early indication of a potential electrical issue while allowing the system to continue supplying power when required. Understanding how line isolation monitoring works and why regular testing matters can help facility managers maintain reliable electrical safety systems.
What Is Line Isolation Monitoring?
A Line Isolation Monitor (LIM) is a device used with an isolated power system to monitor its electrical isolation from ground. Unlike a conventional grounded system, an isolated power system is intended to continue operating after an initial fault while personnel address the problem.
The LIM monitors the system and provides an alarm when the isolation level drops below its established threshold. This alert gives qualified personnel an opportunity to locate and correct the issue before another fault creates a more serious condition.
How Does a Line Isolation Monitor Work?
A LIM continuously evaluates the electrical system for changes that may indicate reduced isolation. If connected equipment, wiring, or insulation creates an unwanted path to ground, the monitor detects the condition and activates its alarm.
This may include visual and audible indications that notify personnel of the issue. Proper operation of these functions is important, particularly in areas where electrical power supports critical equipment.
Where Is Line Isolation Monitoring Used?
Line Isolation Monitoring is commonly associated with healthcare facilities that use isolated power systems. Operating rooms, critical-care spaces, and other specialized medical areas may rely on these systems to support electrical safety and power continuity.
The specific application depends on the facility’s electrical design and requirements. Proper monitoring gives personnel a clear indication when an isolation condition requires attention.
Why Is Line Isolation Monitoring Important?
A first fault in an isolated power system does not necessarily result in an immediate power interruption. Instead, the LIM can alert personnel to the condition so the source can be investigated and corrected.
Key benefits include:
- Early identification of isolation problems
- Continuous awareness of system conditions
- Support for electrical safety
- Greater confidence in critical power system operation
Regular testing also plays an important role because the monitoring equipment must function properly when an alarm condition occurs.

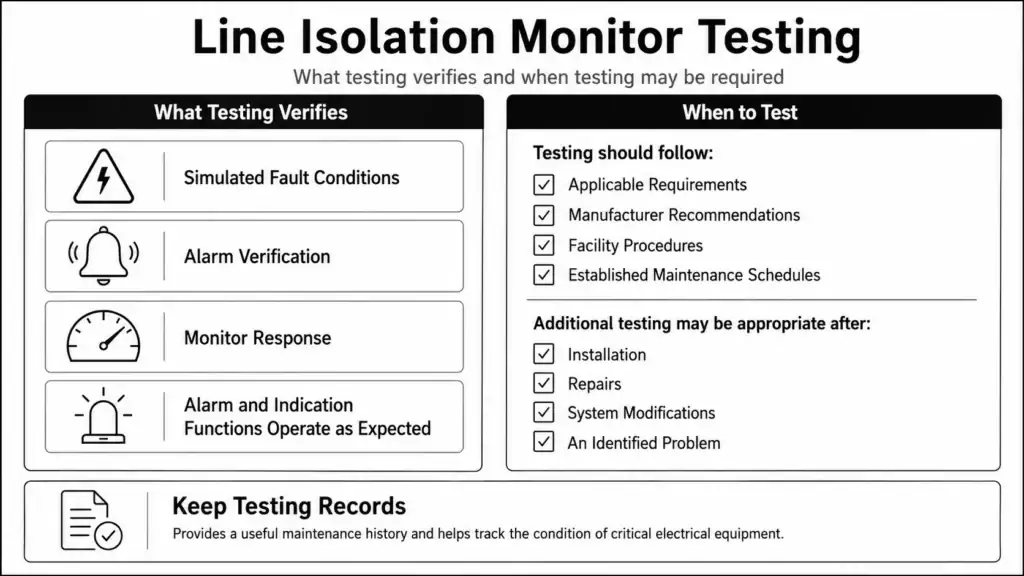

What Does Line Isolation Monitor Testing Involve?
Testing verifies that the monitor responds properly and that its alarm and indication functions operate as expected. Depending on the equipment and system configuration, testing may include simulated fault conditions, alarm verification, and evaluation of the monitor’s response.
Tru-Amp Corporation provides electrical testing services for facilities that need professional evaluation of their equipment. Its technicians can assess line isolation monitoring systems as part of a broader electrical testing program.
When Should a Line Isolation Monitor Be Tested?
Testing should follow applicable requirements, manufacturer recommendations, facility procedures, and established maintenance schedules. Additional testing may be appropriate after installation, repairs, system modifications, or an identified problem.
Keeping testing records also gives facility personnel a useful maintenance history and helps track the condition of critical electrical equipment.
Choosing Professional Line Isolation Monitoring Services
Professional testing can help identify problems with a monitoring system before the equipment is needed during an actual electrical event. Look for an electrical testing provider with experience working with specialized power systems and healthcare facilities.
Tru-Amp offers Line Isolation Monitoring Services as part of its electrical testing capabilities. Its experienced technicians work with a range of electrical equipment and can support facilities that need dependable testing and maintenance.
Keep Critical Electrical Systems Ready
Line Isolation Monitoring gives facilities continuous visibility into the isolation condition of specialized electrical systems. Regular testing helps confirm that the monitor, alarms, and related functions are ready to respond when a problem occurs.
If your facility relies on an isolated power system, professional testing can provide valuable confirmation that its monitoring equipment is operating properly. Contact Tru-Amp Corporation to discuss your Line Isolation Monitoring Services and electrical testing needs.
